A general domain for two compact objects. More...

#include <BinaryCompactObject.hpp>

Classes
struct	AdditionToOuterLayerRadialRefinementLevel

struct	EnvelopingCube

struct	Excision
	Options for an excision region in the domain. More...

struct	ExpansionFunctionOfTimeNames
	The names of the functions of times to be added to the DataBox for the expansion map. More...

struct	ExpansionMap

struct	ExpansionMapOuterBoundary
	The outer boundary or pivot point of the `domain::CoordinateMaps::TimeDependent::CubicScale` map. More...

struct	InitialAngularVelocity
	The angular velocity of the rotation. More...

struct	InitialExpansion
	The initial values of the expansion factors. More...

struct	InitialExpansionVelocity
	The velocity of the expansion factors. More...

struct	InitialExpirationDeltaT
	The initial time interval for updates of the functions of time. More...

struct	InitialGridPoints

struct	InitialRefinement

struct	InitialRotationAngle
	The initial value of the rotation angle. More...

struct	InitialSizeMapAccelerations
	Initial accelerations for functions of time for size maps for objects A,B. More...

struct	InitialSizeMapValues
	Initial values for functions of time for size maps for objects A,B. More...

struct	InitialSizeMapVelocities
	Initial velocities for functions of time for size maps for objects A,B. More...

struct	InitialTime
	The initial time of the functions of time. More...

struct	Object
	Options for one of the two objects in the binary domain. More...

struct	ObjectA

struct	ObjectB

struct	OuterBoundaryCondition

struct	OuterSphere

struct	RadiusEnvelopingCube

struct	RadiusOuterSphere

struct	RotationAboutZAxisFunctionOfTimeName
	The name of the function of time to be added to the added to the DataBox for the rotation-about-the-z-axis map. More...

struct	RotationAboutZAxisMap

struct	SizeMap

struct	SizeMapFunctionOfTimeNames
	The names of the functions of times to be added to the added to the DataBox for the size map. More...

struct	TimeDependentMaps

struct	UseLogarithmicMapOuterSphericalShell

struct	UseProjectiveMap

Public Types
using	maps_list = tmpl::list< domain::CoordinateMap< Frame::Logical, Frame::Inertial, CoordinateMaps::ProductOf3Maps< CoordinateMaps::Affine, CoordinateMaps::Affine, CoordinateMaps::Affine > >, domain::CoordinateMap< Frame::Logical, Frame::Inertial, CoordinateMaps::ProductOf3Maps< CoordinateMaps::Equiangular, CoordinateMaps::Equiangular, CoordinateMaps::Equiangular > >, domain::CoordinateMap< Frame::Logical, Frame::Inertial, CoordinateMaps::ProductOf3Maps< CoordinateMaps::Affine, CoordinateMaps::Affine, CoordinateMaps::Affine >, CoordinateMaps::ProductOf2Maps< CoordinateMaps::Affine, CoordinateMaps::Identity< 2 > > >, domain::CoordinateMap< Frame::Logical, Frame::Inertial, CoordinateMaps::DiscreteRotation< 3 >, CoordinateMaps::ProductOf3Maps< CoordinateMaps::Affine, CoordinateMaps::Affine, CoordinateMaps::Affine > >, domain::CoordinateMap< Frame::Logical, Frame::Inertial, CoordinateMaps::ProductOf3Maps< CoordinateMaps::Equiangular, CoordinateMaps::Equiangular, CoordinateMaps::Equiangular > >, domain::CoordinateMap< Frame::Logical, Frame::Inertial, CoordinateMaps::ProductOf3Maps< CoordinateMaps::Equiangular, CoordinateMaps::Equiangular, CoordinateMaps::Equiangular >, CoordinateMaps::ProductOf2Maps< CoordinateMaps::Affine, CoordinateMaps::Identity< 2 > > >, domain::CoordinateMap< Frame::Logical, Frame::Inertial, CoordinateMaps::Frustum >, domain::CoordinateMap< Frame::Logical, Frame::Inertial, CoordinateMaps::Wedge< 3 > >, domain::CoordinateMap< Frame::Grid, Frame::Inertial, domain::CoordinateMaps::TimeDependent::CubicScale< 3 >, domain::CoordinateMaps::TimeDependent::ProductOf2Maps< domain::CoordinateMaps::TimeDependent::Rotation< 2 >, domain::CoordinateMaps::Identity< 1 > > >, domain::CoordinateMap< Frame::Grid, Frame::Inertial, domain::CoordinateMaps::TimeDependent::SphericalCompression< false >, domain::CoordinateMaps::TimeDependent::CubicScale< 3 >, domain::CoordinateMaps::TimeDependent::ProductOf2Maps< domain::CoordinateMaps::TimeDependent::Rotation< 2 >, domain::CoordinateMaps::Identity< 1 > > > >

template<typename Metavariables >
using	time_independent_options = tmpl::append< tmpl::list< ObjectA, ObjectB, RadiusEnvelopingCube, RadiusOuterSphere, InitialRefinement, InitialGridPoints, UseProjectiveMap, UseLogarithmicMapOuterSphericalShell, AdditionToOuterLayerRadialRefinementLevel >, tmpl::conditional_t< domain::BoundaryConditions::has_boundary_conditions_base_v< typename Metavariables::system >, tmpl::list< OuterBoundaryCondition< domain::BoundaryConditions::get_boundary_conditions_base< typename Metavariables::system > > >, tmpl::list<> > >

using	time_dependent_options = tmpl::list< InitialTime, InitialExpirationDeltaT, ExpansionMapOuterBoundary, InitialExpansion, InitialExpansionVelocity, ExpansionFunctionOfTimeNames, InitialRotationAngle, InitialAngularVelocity, RotationAboutZAxisFunctionOfTimeName, InitialSizeMapValues, InitialSizeMapVelocities, InitialSizeMapAccelerations, SizeMapFunctionOfTimeNames >

template<typename Metavariables >
using	options = tmpl::conditional_t< BinaryCompactObject_detail::enable_time_dependent_maps_v< Metavariables >, tmpl::append< time_dependent_options, time_independent_options< Metavariables > >, time_independent_options< Metavariables > >

Public Member Functions
	BinaryCompactObject (Object object_A, Object object_B, double radius_enveloping_cube, double radius_enveloping_sphere, size_t initial_refinement, size_t initial_grid_points_per_dim, bool use_projective_map=true, bool use_logarithmic_map_outer_spherical_shell=false, size_t addition_to_outer_layer_radial_refinement_level=0, std::unique_ptr< domain::BoundaryConditions::BoundaryCondition > outer_boundary_condition=nullptr, const Options::Context &context={})

	BinaryCompactObject (double initial_time, std::optional< double > initial_expiration_delta_t, double expansion_map_outer_boundary, std::array< double, 2 > initial_expansion, std::array< double, 2 > initial_expansion_velocity, std::array< std::string, 2 > expansion_function_of_time_names, double initial_rotation_angle, double initial_angular_velocity, std::string rotation_about_z_axis_function_of_time_name, std::array< double, 2 > initial_size_map_values, std::array< double, 2 > initial_size_map_velocities, std::array< double, 2 > initial_size_map_accelerations, std::array< std::string, 2 > size_map_function_of_time_names, Object object_A, Object object_B, double radius_enveloping_cube, double radius_enveloping_sphere, size_t initial_refinement, size_t initial_grid_points_per_dim, bool use_projective_map=true, bool use_logarithmic_map_outer_spherical_shell=false, size_t addition_to_outer_layer_radial_refinement_level=0, std::unique_ptr< domain::BoundaryConditions::BoundaryCondition > outer_boundary_condition=nullptr, const Options::Context &context={})

	BinaryCompactObject (const BinaryCompactObject &)=delete

	BinaryCompactObject (BinaryCompactObject &&) noexcept=default

BinaryCompactObject &	operator= (const BinaryCompactObject &)=delete

BinaryCompactObject &	operator= (BinaryCompactObject &&) noexcept=default

Domain< 3 >	create_domain () const noexcept override

std::vector< std::array< size_t, 3 > >	initial_extents () const noexcept override
	Obtain the initial grid extents of the Elements in each block. More...

std::vector< std::array< size_t, 3 > >	initial_refinement_levels () const noexcept override
	Obtain the initial refinement levels of the blocks. More...

auto	functions_of_time () const noexcept -> std::unordered_map< std::string, std::unique_ptr< domain::FunctionsOfTime::FunctionOfTime > > override
	Retrieve the functions of time used for moving meshes. More...

Public Member Functions inherited from DomainCreator< 3 >
	DomainCreator (const DomainCreator< VolumeDim > &)=delete

	DomainCreator (DomainCreator< VolumeDim > &&) noexcept=default

DomainCreator< VolumeDim > &	operator= (const DomainCreator< VolumeDim > &)=delete

DomainCreator< VolumeDim > &	operator= (DomainCreator< VolumeDim > &&) noexcept=default

Static Public Attributes
static constexpr Options::String	help

Detailed Description

A general domain for two compact objects.

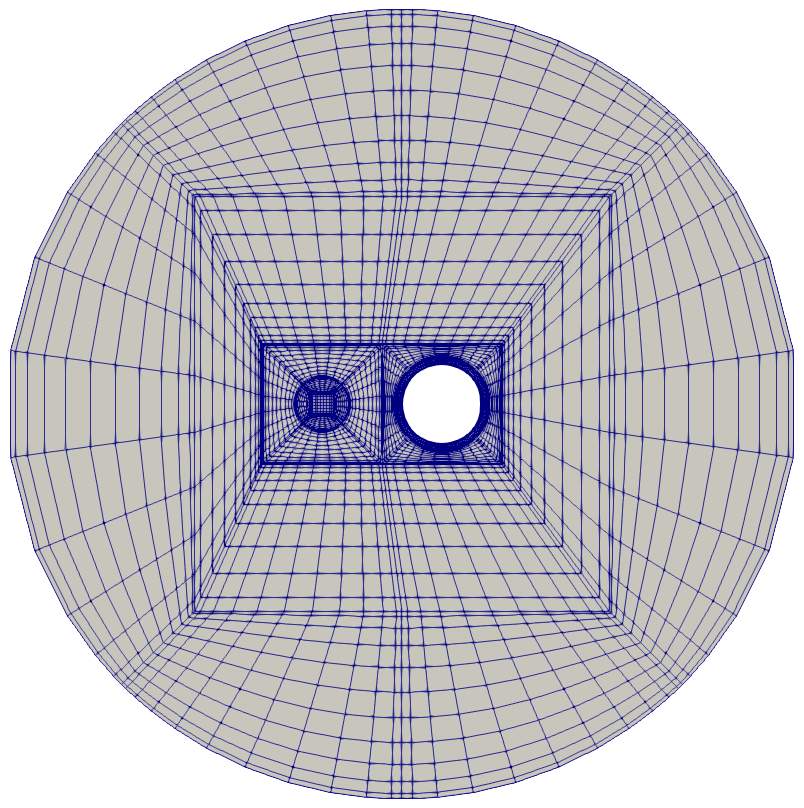

A BHNS domain.

Creates a 3D Domain that represents a binary compact object solution. The Domain consists of 4, 5, or 6 nested layers of blocks; these layers are, working from the interior toward the exterior:

0: (optionally) The block at the center of each compact object, if not excised. If present, this block is a cube. If excised, the hole left by its absence is spherical.
1: The blocks that resolve each individual compact object. This layer has a spherical outer boundary - if the corresponding layer-0 block exists, then the layer is a cube-to-sphere transition; if the layer-0 block is excised, then the layer is a spherical shell.
2: The blocks that surround each object with a cube. Around each compact object, this layer transitions from a sphere to a cube.
3: The blocks that surround each cube with a half-cube. At this layer, the two compact objects are enclosed in a single cube-shaped grid.
4: The 10 blocks that form the first outer shell. This layer transitions back to spherical. The gridpoints are distributed linearly with respect to radius.
5: The 10 blocks that form a second outer shell. This layer is spherical, so a logarithmic map can optionally be used in this layer. This allows the domain to extend to large radial distances from the compact objects. This layer can be h-refined radially, creating a layer of multiple concentric spherical shells.

In the code and options below, ObjectA and ObjectB refer to the two compact objects, and by extension, also refer to the layers that immediately surround each compact object. Note that ObjectA is located to the left of the origin (along the negative x-axis) and ObjectB is located to the right of the origin. enveloping cube refers to the outer surface of Layer 3. outer sphere is the radius of the spherical outer boundary, which is the outer boundary of Layer 5. The enveloping cube and outer sphere are both centered at the origin. cutting plane refers to the plane along which the domain divides into two hemispheres. In the final coordinates, the cutting plane always intersects the x-axis at the origin.

Note: The x-coordinate locations of the ObjectA and ObjectB should be chosen such that the center of mass is located at x=0.; When using this domain, the metavariables struct can contain a struct named domain that conforms to domain::protocols::Metavariables. If domain::enable_time_dependent_maps is either set to false or not specified in the metavariables, then this domain will be time-independent. If domain::enable_time_dependent_maps is set to true, then this domain also includes a time-dependent map, along with additional options (and a corresponding constructor) for initializing the time-dependent map. These options include InitialTime and InitialExpirationDeltaT, which specify the initial time and the initial updating time interval, respectively, for the FunctionsOfTime controlling the map. The time-dependent map itself consists of a composition of a CubicScale expansion map and a Rotation map about the z axis everywhere except possibly in layer 1; in that case, if ObjectA or ObjectB is excised, then the time-dependent map in the corresponding blocks in layer 1 is a composition of a SphericalCompression size map, a CubicScale expansion map, and a Rotation map about the z axis.

Member Function Documentation

◆ create_domain()

Domain< 3 > domain::creators::BinaryCompactObject::create_domain ( ) const

overridevirtualnoexcept

Implements DomainCreator< 3 >.

◆ functions_of_time()

auto domain::creators::BinaryCompactObject::functions_of_time ( ) const -> std::unordered_map< std::string, std::unique_ptr<domain::FunctionsOfTime::FunctionOfTime>>

overridevirtualnoexcept

Retrieve the functions of time used for moving meshes.

Reimplemented from DomainCreator< 3 >.

◆ initial_extents()

std::vector< std::array< size_t, 3 > > domain::creators::BinaryCompactObject::initial_extents ( ) const

overridevirtualnoexcept

Obtain the initial grid extents of the Elements in each block.

Implements DomainCreator< 3 >.

◆ initial_refinement_levels()

std::vector< std::array< size_t, 3 > > domain::creators::BinaryCompactObject::initial_refinement_levels ( ) const

overridevirtualnoexcept

Obtain the initial refinement levels of the blocks.

Implements DomainCreator< 3 >.
