domain::creators::Shell Class Reference

Creates a 3D Domain in the shape of a hollow spherical shell consisting of six wedges. More...

#include <Shell.hpp>

Classes
struct	AspectRatio
struct	BoundaryConditions
struct	InitialGridPoints
struct	InitialRefinement
struct	InnerBoundaryCondition
struct	InnerRadius
struct	OuterBoundaryCondition
struct	OuterRadius
struct	RadialDistribution
struct	RadialPartitioning
struct	TimeDependence
struct	UseEquiangularMap
struct	WhichWedges

Public Types
using	maps_list = tmpl::list< domain::CoordinateMap< Frame::Logical, Frame::Inertial, CoordinateMaps::Wedge< 3 >, CoordinateMaps::EquatorialCompression, CoordinateMaps::ProductOf2Maps< CoordinateMaps::Affine, CoordinateMaps::Identity< 2 > > > >
using	basic_options = tmpl::list< InnerRadius, OuterRadius, InitialRefinement, InitialGridPoints, UseEquiangularMap, AspectRatio, RadialPartitioning, RadialDistribution, WhichWedges, TimeDependence >
template<typename Metavariables >
using	options = tmpl::conditional_t< domain::BoundaryConditions::has_boundary_conditions_base_v< typename Metavariables::system >, tmpl::push_back< basic_options, InnerBoundaryCondition< domain::BoundaryConditions::get_boundary_conditions_base< typename Metavariables::system > >, OuterBoundaryCondition< domain::BoundaryConditions::get_boundary_conditions_base< typename Metavariables::system > > >, basic_options >

Public Member Functions
	Shell (double inner_radius, double outer_radius, size_t initial_refinement, std::array< size_t, 2 > initial_number_of_grid_points, bool use_equiangular_map=true, double aspect_ratio=1.0, std::vector< double > radial_partitioning={}, std::vector< domain::CoordinateMaps::Distribution > radial_distribution={domain::CoordinateMaps::Distribution::Linear}, ShellWedges=ShellWedges::All, std::unique_ptr< domain::creators::time_dependence::TimeDependence< 3 > > time_dependence=nullptr, std::unique_ptr< domain::BoundaryConditions::BoundaryCondition > inner_boundary_condition=nullptr, std::unique_ptr< domain::BoundaryConditions::BoundaryCondition > outer_boundary_condition=nullptr, const Options::Context &context={})
	Shell (const Shell &)=delete
	Shell (Shell &&) noexcept=default
Shell &	operator= (const Shell &)=delete
Shell &	operator= (Shell &&) noexcept=default
Domain< 3 >	create_domain () const noexcept override
std::vector< std::array< size_t, 3 > >	initial_extents () const noexcept override
	Obtain the initial grid extents of the Elements in each block. More...
std::vector< std::array< size_t, 3 > >	initial_refinement_levels () const noexcept override
	Obtain the initial refinement levels of the blocks. More...
auto	functions_of_time () const noexcept -> std::unordered_map< std::string, std::unique_ptr< domain::FunctionsOfTime::FunctionOfTime > > override
	Retrieve the functions of time used for moving meshes. More...
Public Member Functions inherited from DomainCreator< 3 >
	DomainCreator (const DomainCreator< VolumeDim > &)=delete
	DomainCreator (DomainCreator< VolumeDim > &&) noexcept=default
DomainCreator< VolumeDim > &	operator= (const DomainCreator< VolumeDim > &)=delete
DomainCreator< VolumeDim > &	operator= (DomainCreator< VolumeDim > &&) noexcept=default

Static Public Attributes
static constexpr Options::String	help

Detailed Description

Creates a 3D Domain in the shape of a hollow spherical shell consisting of six wedges.

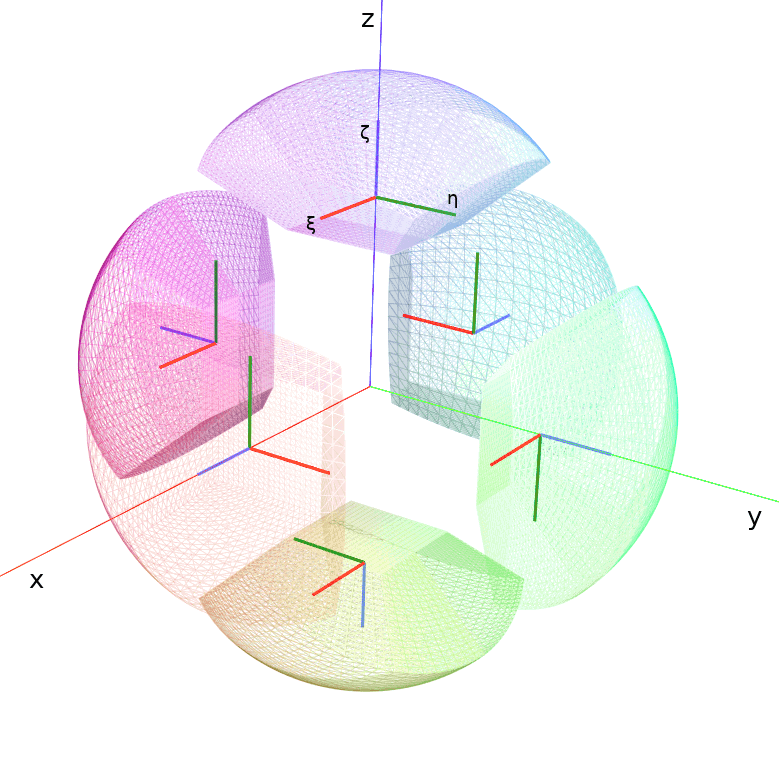

The orientation of each wedge in Shell.

Member Function Documentation

create_domain()

Domain< 3 > domain::creators::Shell::create_domain ( ) const

overridevirtualnoexcept

Implements DomainCreator< 3 >.

functions_of_time()

auto domain::creators::Shell::functions_of_time ( ) const -> std::unordered_map< std::string, std::unique_ptr<domain::FunctionsOfTime::FunctionOfTime>>

overridevirtualnoexcept

Retrieve the functions of time used for moving meshes.

Reimplemented from DomainCreator< 3 >.

initial_extents()

std::vector< std::array< size_t, 3 > > domain::creators::Shell::initial_extents ( ) const

overridevirtualnoexcept

Obtain the initial grid extents of the Elements in each block.

Implements DomainCreator< 3 >.

initial_refinement_levels()

std::vector< std::array< size_t, 3 > > domain::creators::Shell::initial_refinement_levels ( ) const

overridevirtualnoexcept

Obtain the initial refinement levels of the blocks.

Implements DomainCreator< 3 >.

Member Data Documentation

help

constexpr Options::String domain::creators::Shell::help

staticconstexpr

Initial value:

{
      "Creates a 3D spherical shell with 6 Blocks. `UseEquiangularMap` has\n"
      "a default value of `true` because there is no central Block in this\n"
      "domain. Equidistant coordinates are best suited to Blocks with\n"
      "Cartesian grids. However, the option is allowed for testing "
      "purposes. The `aspect_ratio` moves grid points on the shell towards\n"
      "the equator for values greater than 1.0, and towards the poles for\n"
      "positive values less than 1.0. The user may also choose to use only a "
      "single wedge (along the -x direction), or four wedges along the x-y "
      "plane using the `WhichWedges` option. Using the RadialPartitioning "
      "option, a user may set the locations of boundaries of radial "
      "partitions, each of which will have the grid points and refinement "
      "specified from the previous options. The RadialDistribution option "
      "specifies whether the radial grid points are distributed linearly or "
      "logarithmically for each radial partition. Therefore, there must be N+1 "
      "radial distributions specified for N radial partitions. For simple "
      "h-refinement where the number but not the locations of the radial "
      "boundaries are important, the InitialRefinement option should be used "
      "instead of RadialPartitioning."}
