domain::creators::Cylinder Class Reference

Create a 3D Domain in the shape of a cylinder where the cross-section is a square surrounded by four two-dimensional wedges (see Wedge). More...

#include <Cylinder.hpp>

Classes
struct	BoundaryConditions
struct	HeightPartitioning
struct	InitialGridPoints
struct	InitialRefinement
struct	InnerRadius
struct	IsPeriodicInZ
struct	LowerBound
struct	LowerBoundaryCondition
struct	MantleBoundaryCondition
struct	OuterRadius
struct	RadialDistribution
struct	RadialPartitioning
struct	UpperBound
struct	UpperBoundaryCondition
struct	UseEquiangularMap

Public Types
using	maps_list = tmpl::list< domain::CoordinateMap< Frame::Logical, Frame::Inertial, CoordinateMaps::ProductOf3Maps< CoordinateMaps::Affine, CoordinateMaps::Affine, CoordinateMaps::Affine > >, domain::CoordinateMap< Frame::Logical, Frame::Inertial, CoordinateMaps::ProductOf3Maps< CoordinateMaps::Equiangular, CoordinateMaps::Equiangular, CoordinateMaps::Affine > >, domain::CoordinateMap< Frame::Logical, Frame::Inertial, CoordinateMaps::ProductOf2Maps< CoordinateMaps::Wedge< 2 >, CoordinateMaps::Affine > > >
template<typename Metavariables >
using	options = tmpl::append< tmpl::list< InnerRadius, OuterRadius, LowerBound, UpperBound >, tmpl::conditional_t< domain::BoundaryConditions::has_boundary_conditions_base_v< typename Metavariables::system >, tmpl::list< LowerBoundaryCondition< domain::BoundaryConditions::get_boundary_conditions_base< typename Metavariables::system > >, UpperBoundaryCondition< domain::BoundaryConditions::get_boundary_conditions_base< typename Metavariables::system > >, MantleBoundaryCondition< domain::BoundaryConditions::get_boundary_conditions_base< typename Metavariables::system > > >, tmpl::list< IsPeriodicInZ > >, tmpl::list< InitialRefinement, InitialGridPoints, UseEquiangularMap, RadialPartitioning, HeightPartitioning, RadialDistribution > >

Public Member Functions
	Cylinder (double inner_radius, double outer_radius, double lower_bound, double upper_bound, bool is_periodic_in_z, const typename InitialRefinement::type &initial_refinement, const typename InitialGridPoints::type &initial_number_of_grid_points, bool use_equiangular_map, std::vector< double > radial_partitioning={}, std::vector< double > height_partitioning={}, std::vector< domain::CoordinateMaps::Distribution > radial_distribution={domain::CoordinateMaps::Distribution::Linear}, const Options::Context &context={})
	Cylinder (double inner_radius, double outer_radius, double lower_bound, double upper_bound, std::unique_ptr< domain::BoundaryConditions::BoundaryCondition > lower_boundary_condition, std::unique_ptr< domain::BoundaryConditions::BoundaryCondition > upper_boundary_condition, std::unique_ptr< domain::BoundaryConditions::BoundaryCondition > mantle_boundary_condition, const typename InitialRefinement::type &initial_refinement, const typename InitialGridPoints::type &initial_number_of_grid_points, bool use_equiangular_map, std::vector< double > radial_partitioning={}, std::vector< double > height_partitioning={}, std::vector< domain::CoordinateMaps::Distribution > radial_distribution={domain::CoordinateMaps::Distribution::Linear}, const Options::Context &context={})
	Cylinder (const Cylinder &)=delete
	Cylinder (Cylinder &&) noexcept=default
Cylinder &	operator= (const Cylinder &)=delete
Cylinder &	operator= (Cylinder &&) noexcept=default
Domain< 3 >	create_domain () const noexcept override
std::vector< std::array< size_t, 3 > >	initial_extents () const noexcept override
	Obtain the initial grid extents of the Elements in each block. More...
std::vector< std::array< size_t, 3 > >	initial_refinement_levels () const noexcept override
	Obtain the initial refinement levels of the blocks. More...
Public Member Functions inherited from DomainCreator< 3 >
	DomainCreator (const DomainCreator< VolumeDim > &)=delete
	DomainCreator (DomainCreator< VolumeDim > &&) noexcept=default
DomainCreator< VolumeDim > &	operator= (const DomainCreator< VolumeDim > &)=delete
DomainCreator< VolumeDim > &	operator= (DomainCreator< VolumeDim > &&) noexcept=default
virtual auto	functions_of_time () const noexcept -> std::unordered_map< std::string, std::unique_ptr< domain::FunctionsOfTime::FunctionOfTime > >
	Retrieve the functions of time used for moving meshes. More...

Static Public Attributes
static constexpr Options::String	help

Detailed Description

Create a 3D Domain in the shape of a cylinder where the cross-section is a square surrounded by four two-dimensional wedges (see Wedge).

The outer shell can be split into sub-shells and the cylinder can be split into disks along its height. The block numbering starts at the inner square and goes counter-clockwise, starting with the eastern wedge (+x-direction), through consecutive shells, then repeats this pattern for all layers bottom to top.

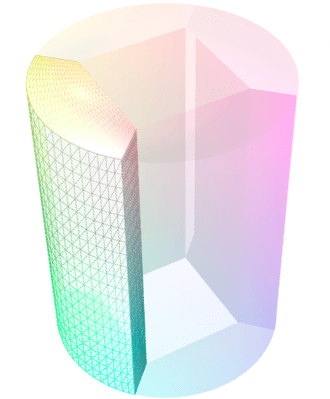

The Cylinder Domain.

Member Function Documentation

create_domain()

Domain< 3 > domain::creators::Cylinder::create_domain ( ) const

overridevirtualnoexcept

Implements DomainCreator< 3 >.

initial_extents()

std::vector< std::array< size_t, 3 > > domain::creators::Cylinder::initial_extents ( ) const

overridevirtualnoexcept

Obtain the initial grid extents of the Elements in each block.

Implements DomainCreator< 3 >.

initial_refinement_levels()

std::vector< std::array< size_t, 3 > > domain::creators::Cylinder::initial_refinement_levels ( ) const

overridevirtualnoexcept

Obtain the initial refinement levels of the blocks.

Implements DomainCreator< 3 >.

Member Data Documentation

help

constexpr Options::String domain::creators::Cylinder::help

staticconstexpr

Initial value:

{
      "Creates a right circular Cylinder with a square prism surrounded by \n"
      "wedges. \n"
      "The cylinder can be partitioned radially into multiple cylindrical \n"
      "shells as well as partitioned along the cylinder's height into \n"
      "multiple disks. Including this partitioning, the number of Blocks is \n"
      "given by (1 + 4*(1+n_s)) * (1+n_z), where n_s is the \n"
      "length of RadialPartitioning and n_z the length of \n"
      "HeightPartitioning. The block numbering starts at the inner square \n"
      "and goes counter-clockwise, starting with the eastern wedge \n"
      "(+x-direction) through consecutive shells, then repeats this pattern \n"
      "for all layers bottom to top. The wedges are named as follows: \n"
      "  +x-direction: East \n"
      "  +y-direction: North \n"
      "  -x-direction: West \n"
      "  -y-direction: South \n"
      "The circularity of the wedge changes from 0 to 1 within the first \n"
      "shell.\n"
      "Equiangular coordinates give better gridpoint spacings in the angular\n"
      "direction, while equidistant coordinates give better gridpoint\n"
      "spacings in the center block."}
